Step-by-Step Guide to Using MagMovers for Retail Signage Installation

Efficient signage installation is crucial for attracting people's attention. MagMovers simplify this process by allowing safe and quick installation of displays without ladders or elevated work platforms.

This guide will explain how to use the different MagMover tools to install and retrieve retail signage. Read on to learn more!

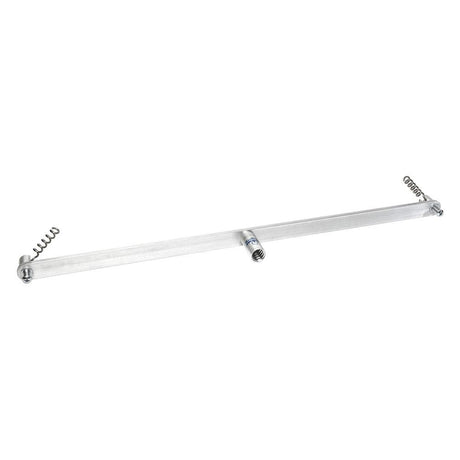

Dual MagMover 24"

The Dual MagMover 24" is a versatile tool for managing displays with two attachment points spaced 24" or more apart.



Installing a Display

1.    Attach the Dual MagMover 24" to a pole.

2.    Connect the display to two ClikMagnets using LoopLine™ and place them on the orange posts.

3.    Lift to the ceiling, allowing each ClikMagnet to attach.

4.    For faster setup, lift both magnets simultaneously.



Retrieving a Display

1.    Attach the Dual MagMover to the pole.

2.    Rotate the corkscrews outward and insert them into the ClikMagnet rings.

3.    Pull down to retrieve the display, securing the magnets with the corkscrews.



Dual MagMover 6"

Designed for displays with up to two attachment points, the Dual MagMover 6" is ideal for installations at great heights while keeping installers safely on the floor.



Installing a Display

1.    Attach them to the end of a MagPole.

2.    Use LoopLine™ to connect the display to the centre rings of two ClikMagnets.

3.    Position each ClikMagnet's centre ring onto the posts of the MagMover.

4.    Lift the assembly, allowing the ClikMagnets to "jump" to the ceiling metal.



Retrieving a Display

1.    Adjust the corkscrews outward.

2.    Fully insert the next corkscrew through the centre ring of the second ClikMagnet and pull downward.

3.    The coils of the corkscrews will hold the ClikMagnets from falling.



Single MagMover

The Single MagMover is perfect for displays with a single attachment point. This lightweight, durable tool is designed for easy and repetitive use.



Installing a Display

1.    Thread the tool onto a MagPole.

2.    Connect the display (with LoopLine™) to the ClikMagnet's centre ring.

3.    Place the ClikMagnet's centre ring on the MagMover post and lift it to the ceiling.



Retrieving a Display

1.    Fully insert the corkscrew into the ClikMagnet's centre ring.

2.    Pull downward. The coils of the corkscrew hold the ClikMagnet (+ display) from falling.



Multi MagMover 24"

With eight posts, the Multi MagMover 24" handles displays with up to eight attachment points, making it ideal for complex signage.



Installing a Flexible Display:

1.    Thread the Multi MagMover onto the MagPole.

2.    Attach the display using LoopLine™ or Flush Mount Clips at each attachment point.

3.    Place ClikMagnets onto the MagMover posts.

4.    Raise the assembly and attach each ClikMagnet to the ceiling, rotating the MagMover to avoid unintended magnet attachment.



Retrieving a Display:

1.    Turn corkscrews outward, insert them into ClikMagnet rings, and pull down.

2.    For lightweight displays, use the Copper-Drop-Down-Hook to release all magnets and let the display fall.



Sliding Dual MagMover 24" PRO

The Sliding Dual MagMover 24” PRO is perfect for low ceiling installations and retrieving Round ClikMagnets from FlatHats. It also functions like the Dual MagMover 6” and 24”.



Installing Flush-Mount Displays

1.    Pinch open FlushMount Clips, attach them to the ClikMagnet rings and display points, and close.

2.    Attach the Sliding MagMover to a pole and adjust the post spacing to match the display.

3.    Place the ClikMagnets on the posts and lift them to the ceiling until they attach.



Retrieving Flush-Mount Displays:

1.    Attach the MagMover 24" PRO to a threaded pole.

2.    Adjust post spacing to match the display.

3.    Rotate corkscrews outward and insert them into both ClikMagnet rings.

4.    Pull down to retrieve the display securely.



Installing into Suspended FlatHats:

1.    Attach the Sliding MagMover to a pole and adjust the post spacing to match the display.

2.    Connect the display to the round ClikMagnet rings using LoopLine™ or FlushMount Clips.

3.    Place the ClikMagnet rings on the posts and lift to the first FlatHat until it attaches.

4.    Move to the next FlatHat and repeat.



Retrieving ClikMagnets from Suspended FlatHats:

1.    Attach the MagMover to a pole and adjust the post spacing to match the display.

2.    Rotate corkscrews outward and insert them into the ClikMagnet rings.

3.    Pull down to securely retrieve each ClikMagnet (+ display).



MagMovers: Guaranteeing Precise Signage Placement

MagMovers revolutionize retail signage installation, ensuring efficiency and safety. These tools eliminate the need for ladders, enabling quick and professional results.
